PT1545 ~ PONTOON ELLIPTICAL BUNK BRACKET

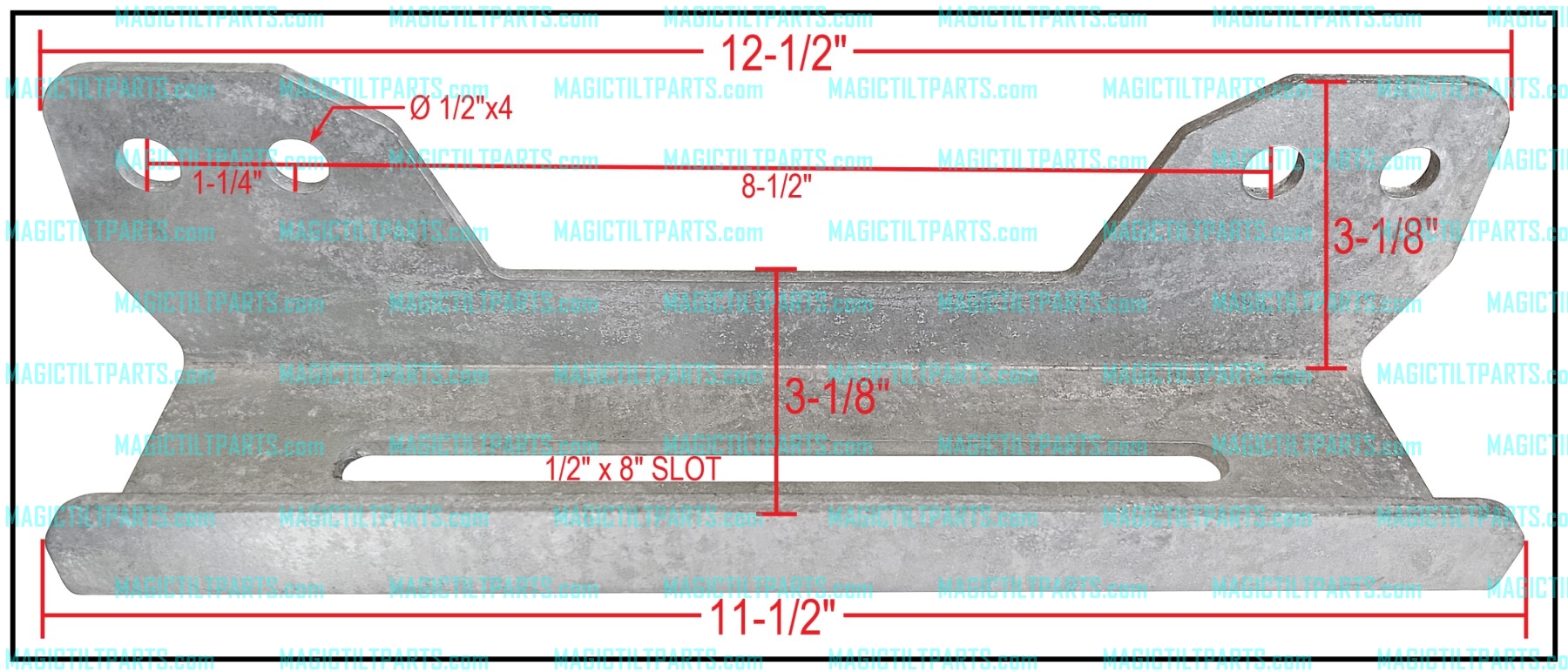

REPRESENTATION PHOTO

MAGIC TILT PONTOON BRACKET ~ PT1545

TYPE: PONTOON ELLIPTICAL BUNK BRACKET
LENGTH OVERALL: 12-1/2"
WIDTH OVERALL: 3-1/8"
HEIGHT OVERALL: 3-1/4"
PIVOT HOLE DIAMETER: 1/2"
MATERIAL: GALVANIZED

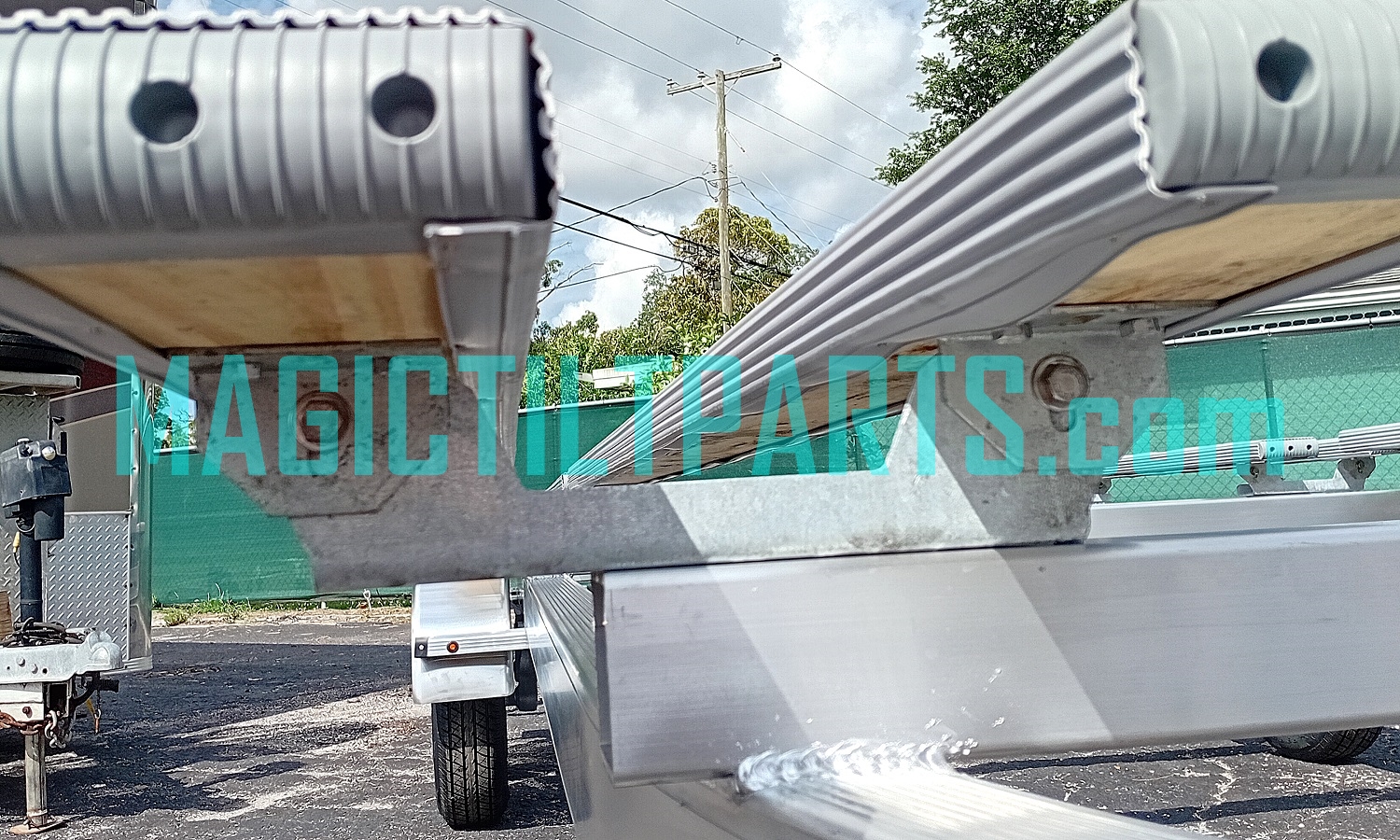

FIXED PONTOON BRACKETS ARE DESIGNED FOR ROUND TUBES WITH NO LIFTING STRAKES. THIS BRACKET IS DESIGNED TO USE PIVOT "L" BRACKETS TO ACCOMMODATE ELLIPTICAL TUBES AND/OR LIFTING STRAKES.

NOTES:
SLOTTED HOLE IN BRACKET ALLOWS LATERAL ADJUSTMENT
FIXED HEIGHT
CAN ACCOMODATE 4"AND 6" WIDE HORIZONTAL BUNK BOARDS
