PH1400 ~ DROP AXLE CONFIGURATION

REPRESENTATION PHOTO

MAGIC TILT DROP-AXLE ADD-ON ~ PH1400

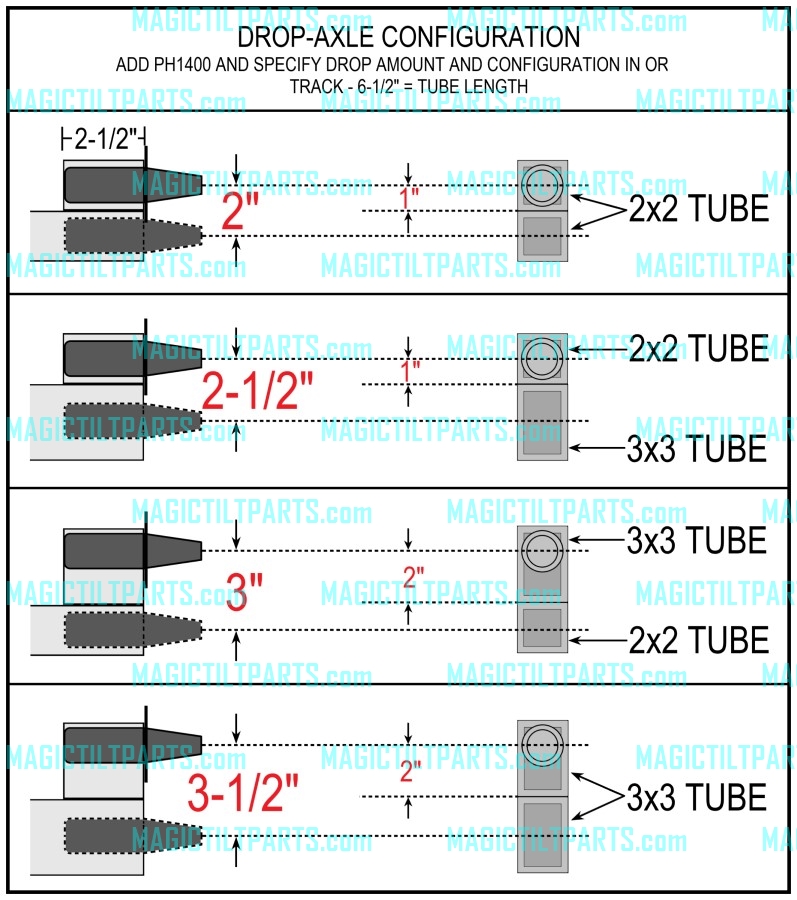

DROP OPTIONS (SEE SECOND IMAGE): 2", 2-1/2", 3", 3-1/2"

THE DROP-AXLE OPTION CAN BE ADDED TO SPRING AXLES. IT IS USED IN CERTAIN INSTANCES TO LOWER THE TRAILER FRAME RELATIVE TO THE SUSPENSION. OFTEN USED WITH SPRING AXLES MOUNTED UNDER THE LEAF SPRINGS, WHERE ADDED CLEARANCE IS NEEDED BETWEEN THE KEEL AND THE AXLE, BUT THE DESIRED OVERALL TRAILER HEIGHT NEEDS TO BE LOWER.

ORDERED AS AN ADD-ON WITH A SPRING AXLE ORDER. SPECIFY AMOUNT OF DROP AND CONFIGURATION WITH ORDER. (SEE CHART IN SECOND IMAGE)
